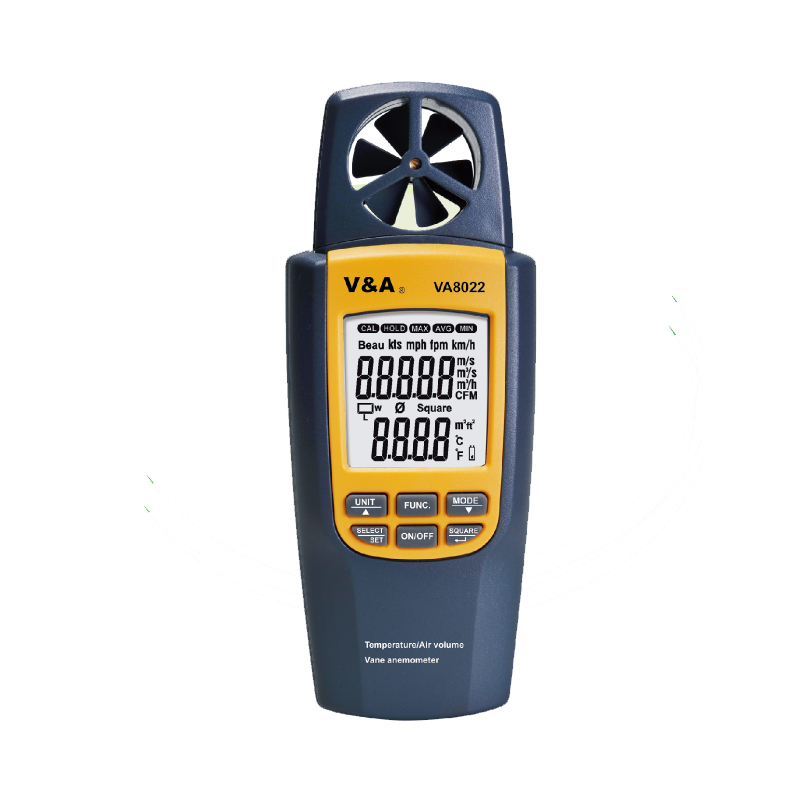

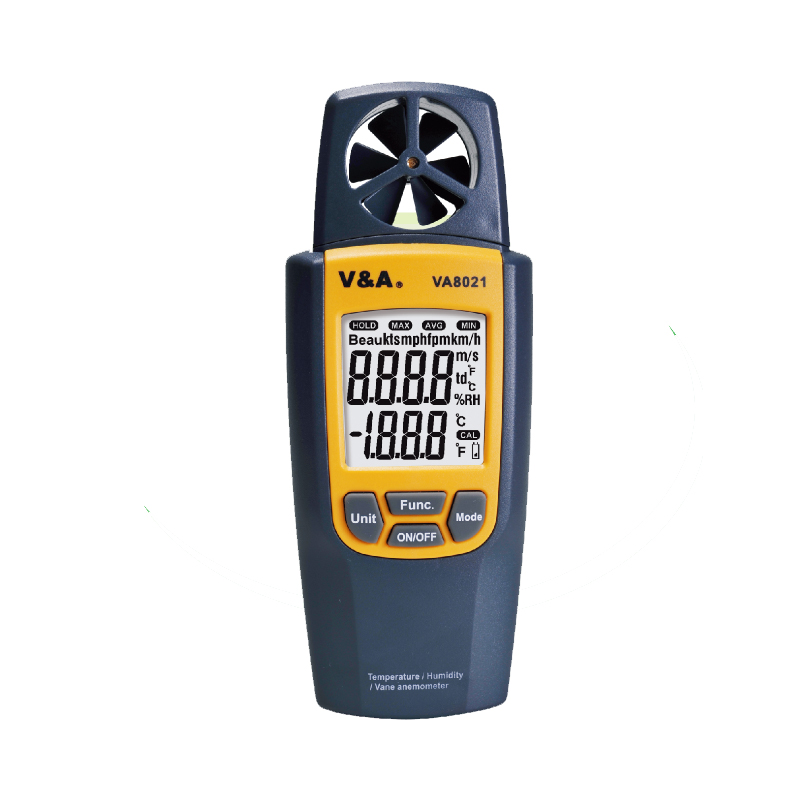

Vane Anemometer VA8020/VA8021/VA8022

Wind speed measurement series Anemometer is composed of the three instrument: Type A(Temperature/Vane anemometer)/Type B(Temperature/Humidity/Vane anemometer)/Type C(Temperature/Air volume/ Vane anemometer). This Anemometer is normally used to measure the wind speed and volume flow at ventilation outlets. In addition to the measurement of humidity and temperature, climatic conditions can also be analysed

Send Inquiry

Description

Product Features：

Display: the top display line always shows the velocity or volume, the bottom display line always show the temperature or humidity.
Parameters:
Velocity: m/s,km/h,fpm,mph,kts,Beaufort
Air volume: m³/h, m³/s, CFM
Temperature: °C,°F
Humidity: %RH，td
Resolution:
Velocity: 0.1m/s，fpm；
Air volume: 1m³/h；
Temperature: 0.1℃ 0.1℉；
Humidity: 0.1%RH;
Range:
Velocity: 0.4 ~ 20m/s, 80 ~ 4000fpm
Air volume: 99999 m³/h
Temperature: -10 ~ 50℃, 14 ~ 122℉
Humidity: 0 ~+100%RH
Accuracy:
Velocity: ± (2% of reading + 0.3m/s) ± (2% of reading + 60fpm)
Air volume: ±(3% of reading) m³/S
Temperature: ±1℃ ±1.8℉
Humidity: ± 3%RH (5~95%RH)
Sample rate: 2 time /sec
Operating environment: -10℃ ~ 50 ℃(14℉~122℉), 0～80%RH
Storage environment: -20℃ ~ 60℃(-4℉~140℉)，0 ~ 80%RH

Product Parameters：

		VA8020	VA8021	VA8022
Measurement		m/s, km/h, fpm, mph, kts, beaufort scale, ℃, ℉	m/s, km/h, fpm, mph, kts, beaufort scale, ℃, ℉, %RH, td*	m/s, km/h, fpm, mph, kts, beaufort scale, ℃, ℉, m³/s, m³/h, CFM, m², ft²
Wind Speed	Range	0.4~20 m/s, 80~4000 fpm
	Accuracy	± (2% of reading + 0.3m/s), ± (2% of reading + 60fpm)
	Resolution	0.1 m/s, 1 fpm	0.1 m/s, 1 fpm	0.1 m/s, 1 fpm
Wind Volume	Range			0~99999 m3/s
	Accuracy			±3% of reading m3/s
	Resolution			1 m3/s
Temperature	Range	-10℃~50℃ (14~122℉)
	Accuracy		±1℃ ±1.8℉	±1℃ ±1.8℉
	Resolution	0.1℃, 0.1℉	0.1℃, 0.1℉	0.1℃, 0.1℉
Humudity	Range		0~100% RH
	Accuracy		±3% RH (5~95% RH)
	Resolution		0.1% RH
Sample Rate		0.5 sec
Features
Data hold		√	√	√
MAX/MIN		√	√	√
Back Light		√	√	√
Overload Display			√	√
Auto Power Off		√	√	√
Low Battery Indicator			√	√
Dimension		157 x 60 x 30 mm	157 x 60 x 30 mm	157 x 60 x 30 mm
Weight		180 g	180 g	180 g
* td = dew point temperature

During use:

To guarantee correct readings: position instrument so that flow impacts at the rear.
Do not press the vane sensor.
The vane sensor should aim at the wind direction.
When performing the temperature and humidity measurenment, in order to ensure the accuracy of the measurement readings, all the interference sources which may affect the measurement results about temperature and humidity (such as the hand) must be away from the sensor.

Accessories：

DC 1.5V (AAA) x 3pcs
String x 1pcs
Users manual x 1pcs
Protective carring case
Name of Parts:
1. Sensor cover
2. Vane sensor
3. Temperature and
Humidity sensor
4. LCD display
5. Function key

General Maintenance：

1. CLEANING INSTRUCTIONS
The meter may be wiped down with a wet sponge or cloth using a mild water based detergent or anti-bacterial soap and rinsed under a gentle stream of cold water.
NOTE:
This unit is not designed for complete submersion or washing in water.
2. BATTERY REPLACEMENT
Use the following procedure:
When the battery voltage drop below proper operation range the symbol will appear on the LCD display and the battery need to be replaced.
Press the battery cover and towards arrowhead direction to open the battery cover.
Replace the b
attery with three new 1.5V batteries (AAA).
Replace the battery cover.
