RTD Calibrator VA720

RTD Calibrator is a exactitude measurement and source instrument, it can be use to calibrate the RTD* transmitter (include most impulse transmitter).
RTD Calibrator can measure or simulate 7 difference types of RTD (℃ or℉), and measure or simulate the Resistance. But it could not use to measurement or source at a same time.

Send Inquiry

Description

Product Features：

Maximum voltage applied between any jack and earth ground or between any tow jack: 30V
Resolution: RTD 0.1 ℃/℉ Resistance 0.01/0.1 Ω
Storage temperature: -40℃～60℃
Operating temperature: -10℃～55℃
Operating altitude: 3000 meters maximum
Temperature coefficient: ±0.01%/℃ on 0℃～18℃ and 28℃～50℃
Relative humidity: 95% up to 30℃，75% up to 40℃，45% up to 50℃，35% up to 55℃
Shock: Random 2g , 5Hz to 500Hz
Safety: 1 meter drop test
Power requirements: 6 x AAA 1.5V Battery
Size: 205mm×98mm×46mm
Weight: 472 g (include battery)

Product Parameters：

	VA720
Range	0.00~3200.0Ω or -200.0~630.0℃
Temperature accuracy	±0.2℃
Resolution	0.1°C
Resistance accuracy	±0.2Ω
Resolution	0.1Ω
Display	Large 5 digit LCD
LCD Size	64×42 mm
Product Size	205 x 97 x 45 mm
Weight	~472 g (include battery)

Application and After-Sales Service：

RTD Process Calibrator is a exactitude measurement and source instrument, it can be use to calibrate the RTD* transmitter (include most impulse transmitter).

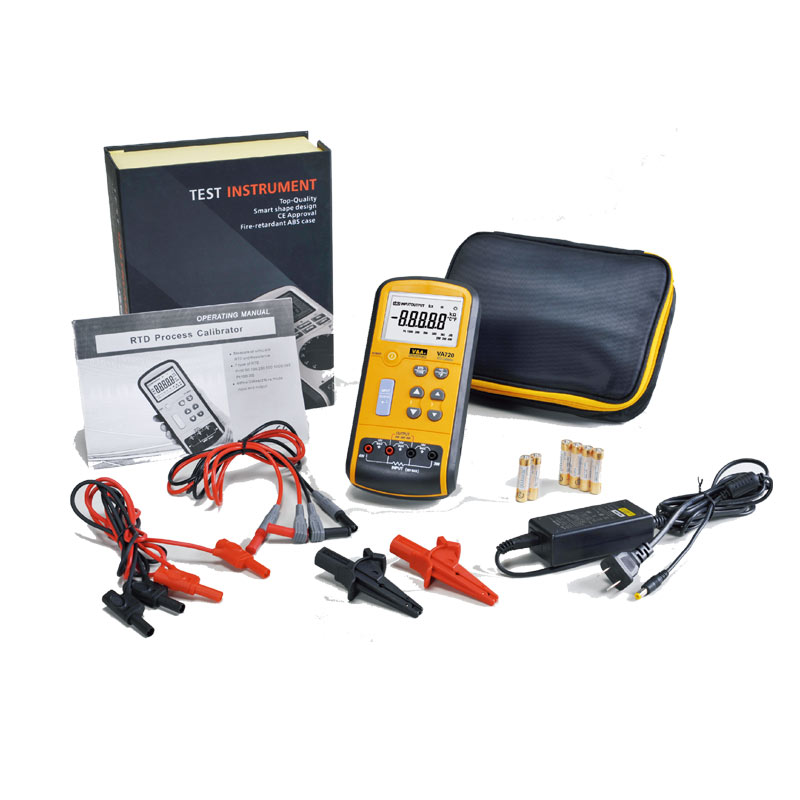

ACCESSORIES：

Delivered with the multimeter:
2 pair of test lead and alligator clip, 6 * AAA 1.5V battery, user’s manual.
