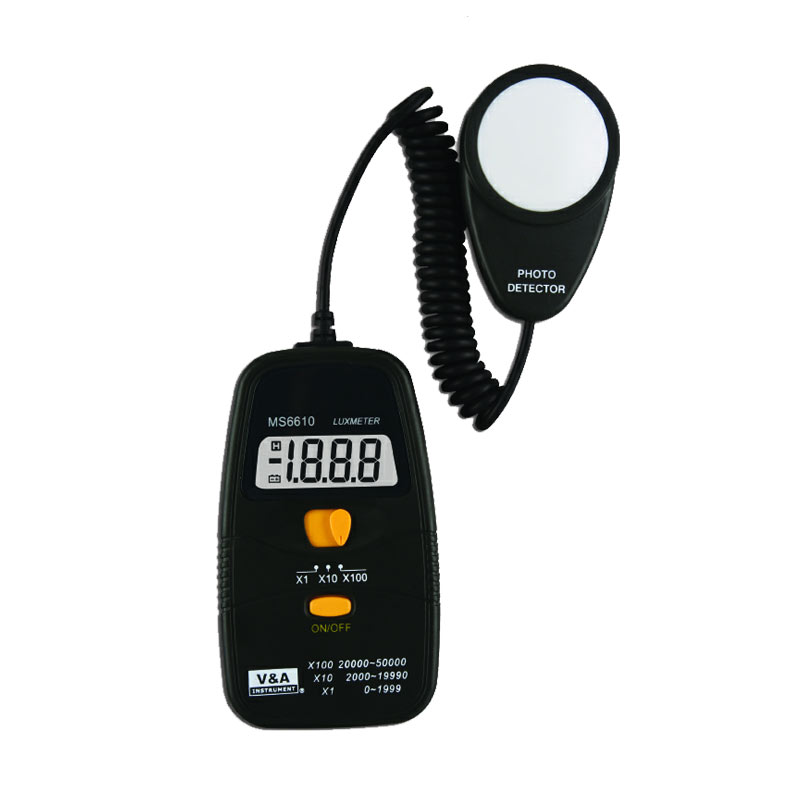

The light intensity meter series includes two type: Type A(Basic), Type B(Light sensor can be rotated in 270°to make measure more easy and fast).
This light meter is an illuminance measuring instrument. It is normally used to measure illuminances, e.g.at workplaces, Public setings, light manufacturing,photo studio, interior renovation,construction, greenhouses
|Range||0~30000 Lux (lm/m2)||0 ~ 2000 Lux|
|2000 ~ 19990 Lux|
|0~2788.0 ftc (lm/ft2)||20000 ~ 50000 Lux|
|Resolution||1 Lux||1 Lux|
|Sample rate||1 time / sec||1 time / sec|
|Operating Environment||0℃~50℃ (32℉~122℉)|
|Storage Environment||-20℃~60℃ (-4℉~140℉)|
|Auto Power Off||about 20 minutes|
|Low Power Indicator||√||√|
|Wire Length||150 cm|
|Sensor Size||83 x 52 x 20.5 mm|
|Dimension||121 x 60x 30 mm||125.5 x 72 x 27 mm|
|Weight||~ 180g (including battery)|
Public setings, light manufacturing,
photo studio, interior renovation,

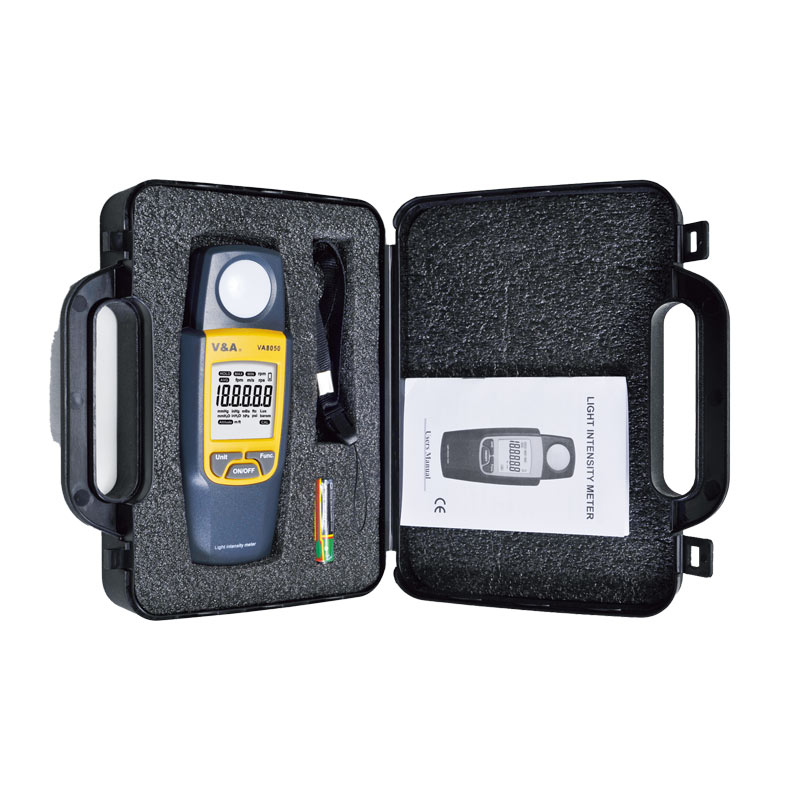

DC1.5V (AAA) x 3pcs
String x 1pcs
Plastic box x 1pcs
Users manual x 1pcs
Name of parts:
1. Sensor cover
2. Light sensor
（270°adjustable only for type B）
3. LCD display
4. Function key
Do not measure at a high temperature, high humidity places.
Keep the light sensor clean.
To guarantee correct readings: Hold the instrument horizontally so that the light sensor is directed upwards.
When not using the instrument for a long time, please remove the battery and avoid storing in high temperature and high humidity.
