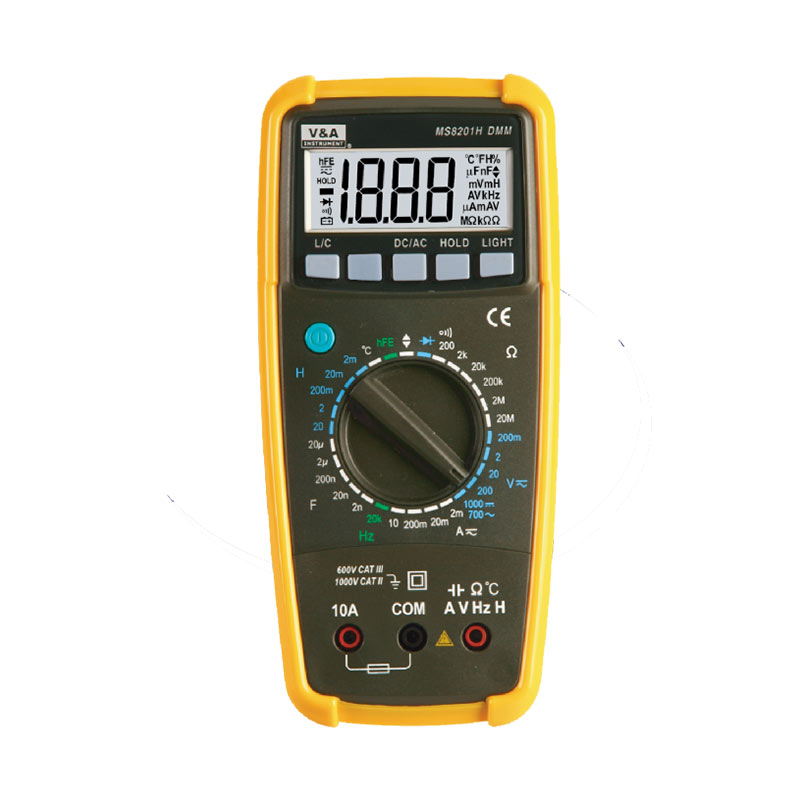

Digital Multimeter With Auto Fuse Protection/LCR Function MS8201/MS8201H


This Digital Multimeter is a portable professional measuring instrument with large LCD and back light easily reading.
This Digital Multimeter has double insulation and has been designed according to IEC61010 concerning electronic measuring instruments with an overvoltage category (CAT II 1000, CAT III 600V) and pollution 2. Model MS8201 is autoranging and comes with a ceramic fuse which can be resettable when the current is over ranged. Model MS8201H is manual ranging and can be used as a LCR meter with TTL logic test.
With functions of data hold, relative measurement, duty cycle, overload protection and low battery indication, this multimeter is ideal for use in the fields, workshop, school, hobby and home applications.

Send Inquiry


    Product Features:

    General specifications

    • Environment conditions:

    600V CAT.III and 1000V CAT.Ⅱ

    Pollution degree: 2

    Altitude < 2000 m

    Operating temperature:  0~40℃, (<80% RH, non-condensing)

    Storage temperature:  -10~60℃, (<70% RH, battery removed)

    • Temperature Coefficient:

    0.1´(specified accuracy) /℃ (<18℃ or >28℃  )

    MAX. Voltage between terminals and earth ground:

    750V AC rms or 1000V DC

    • Fuse Protection(MS8201):

    mA and mA: resettable fuse (F2 RXE040)

    10A: F 10A/250V Æ6.3´32

    • Sample Rate: 3 times/sec for digital data.

    • Range selection: automatic and manual.

    • Over Range indication: LCD will display “OL”.

    • Low battery indication:  The “” is displayed when the battery is under the proper operation range.

    • Polarity indication: “-” displayed automatically.

    • Auto power off: If there is no key or dial operation for 15 minutes, the meter will power itself off to save battery consumption.

    One minute before power off, the beeper will sound 5 sounds. The beeper will sound again before power off.

    • Power source: 9V battery, NEDA 1604, 6F22, or 006P.

    Product Parameters:

    MS8201 MS8201H
    DC Voltage 400mV/4V/40V/400V/1000V±0.7% 200mV/2V/20V/200V/1000V±0.5%
    AC Voltage 4V/40V/400V/750V±0.8% 200mV/2V/20V/200V/700V±1%
    DC Current 4000μA/400mA/10A±1.2% 2mA/20mA/200mA/10A±1%
    AC Current 4000μA/400mA/10A±1.5% 2mA/20mA/200mA/10A±1.2%
    Resistance 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ±1.2% 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ±1%
    Capacitance 4nF/40nF/400nF/4μF/40μF/200μF±5% 2nF/20nF/200nF/2μF/20μF±4%
    Frequency 10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/1HZ±2% 20KHZ±1.5%
    Temperature  -20℃~1000℃±3%
    Inductance 2mH/20mH/200Mh/2H/20H±3%
    LCD Size 30×60 mm 30×60 mm
    Display 3999 1999
    Auto range Manual
    Diode test
    Data hold
    Continuity Checking
    Back Light
    Relative Measurement
    Auto power off
    Battery 6F22(9V)X1 6F22(9V)X1
    Size 185x84x38 mm 185x84x38 mm
    Weight ~ 285 g (including battery) ~ 285 g (including battery)

    Application and After-Sales Service:

    With Functions of Relative measurement, Voltage measurement, Current measurement, Resistance measurement, Diode and Audible continuity Test, Capacitance measurement, Frequency measurement and auto fuse protection function, this MS8201 digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.

    Accessories: User’s manual. Test leads. Carrying case.

    General Maintenance

    Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Dirt or moisture in the terminals can affect readings.

    To clean the terminals:

    Turn the meter off and remove all test leads.

    Shake out any dirt that may be in the terminals.

    Soak a new swab with a cleaning and oiling agent (such as WD-40).

    Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.
