CATIII 500V Pocket Size Digital Multimeter M830A / M830E

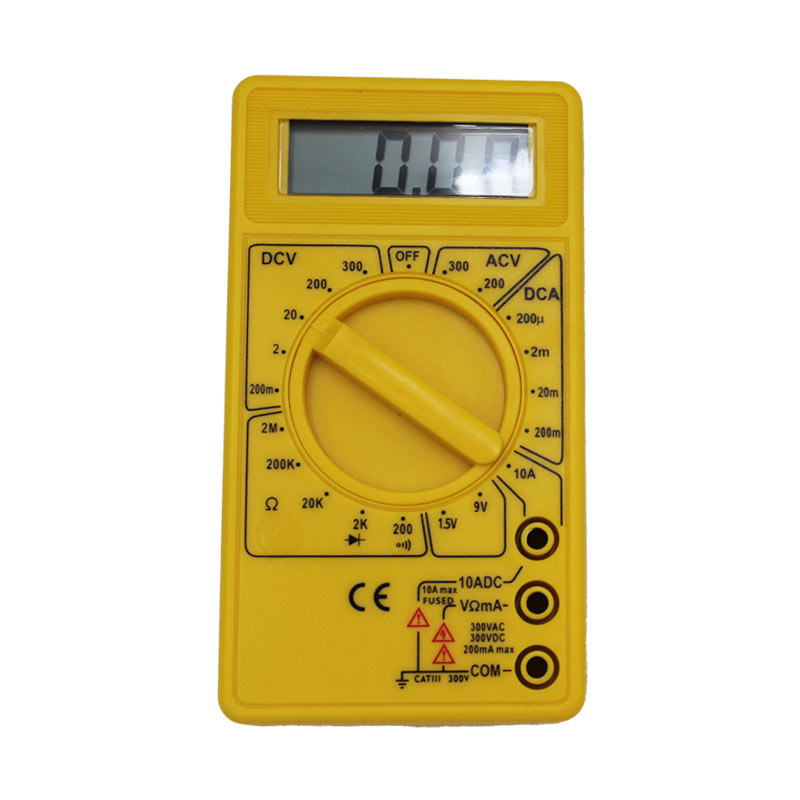

M830E

This Pocket Size Digital Multimeter has been designed according to IEC 61010 concerning electronic measuring instruments with an overvoltage category (CAT III) and pollution 2.
The Pocket Size Digital Multimeter is a handheld 3 1/2 digital multimeter, has 7 functions and 19 ranges to cover DC and AC voltage, DC current, Resistance and Diode with two test leads.
This handy tool is perfect for tradesmen namely electricians and ideal to have in the tool bag

Send Inquiry

Description

Product Features：

CAT III 500V 300V
Display Counts: 1999
7 functions and 19 ranges
2 test leads
Diode Test;
Battery test;
Fuse protection : 250 mA / 600 V ;

Product Parameters：

	M830A	M830E
Range	Manual	Manual
DC Voltage	200mV/2V/20V/200V/500V ± 0.8%	200mV/2V/20V/200V/300V ± 0.5%
AC Voltage	200V/500V ± 1.2%	200V/300V ± 1.2%
DC Current	2mA/20mA/200mA ± 1.0%	200μA/2mA/20mA ± 1.0%, 200mA ± 1.2%, 10A ± 3.0%
Resistance	± 1.0%	± 1.0%
Continuity Buzzer		√
Safety	CATIII 500V	CATIII 300V
LCD Size	15×46 mm	15×46 mm
Max. Display	1999	1999
Fuse	250mA / 600V	250mA/300V & 10A/300V
Diode Test	√	√
Power	Battery 6F22 9V x 1	Battery 6F22 9V x 1
Size	70x126x24mm	70x126x24mm
Weight	~170g (including battery)	~170g (including battery)

Application and After-Sales Service：

With Functions of DC Voltage measurement,DC Current measurement, AC Voltage measurement, Resistance measurement, Diode test,battery test, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.

ACCESSORIES
Operator’s instruction manual
Set of test leads
Gift box
9 volt battery. NEDA 1604 6F22 006P type

Maintenance

Before opening the case, always disconnect test leads from all energized circuits.

For continue protection against fire; replace fuse only with the specified voltage and current ratings:
F 200mA/250V(Quick Acting)
Never use the meter unless the back cover is in place and fastened completely.

Do not use abrasives or solvents on the meter. To clean it using a damp cloth and mild detergent only.
