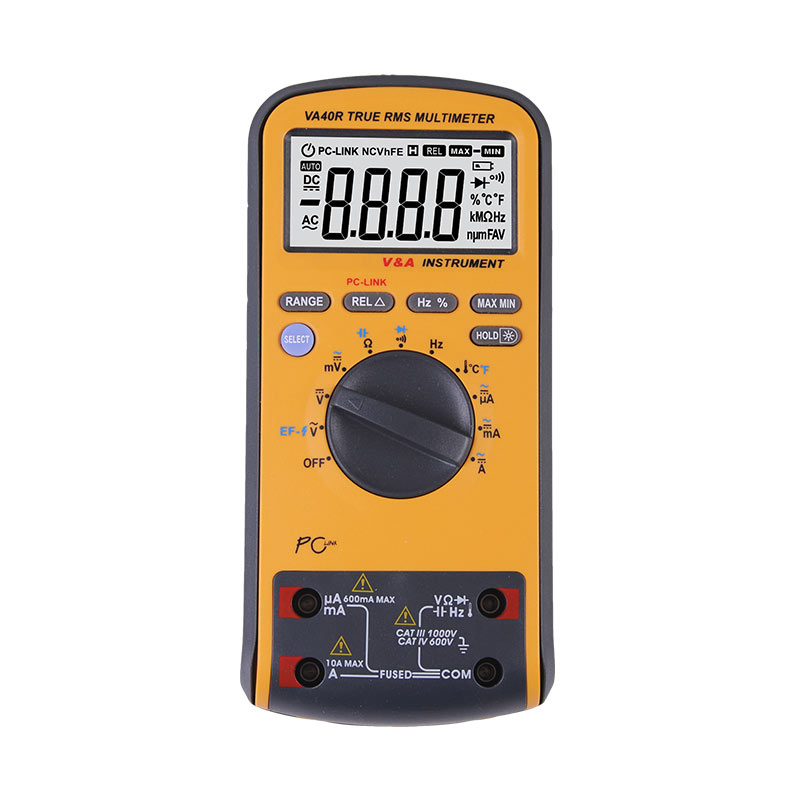

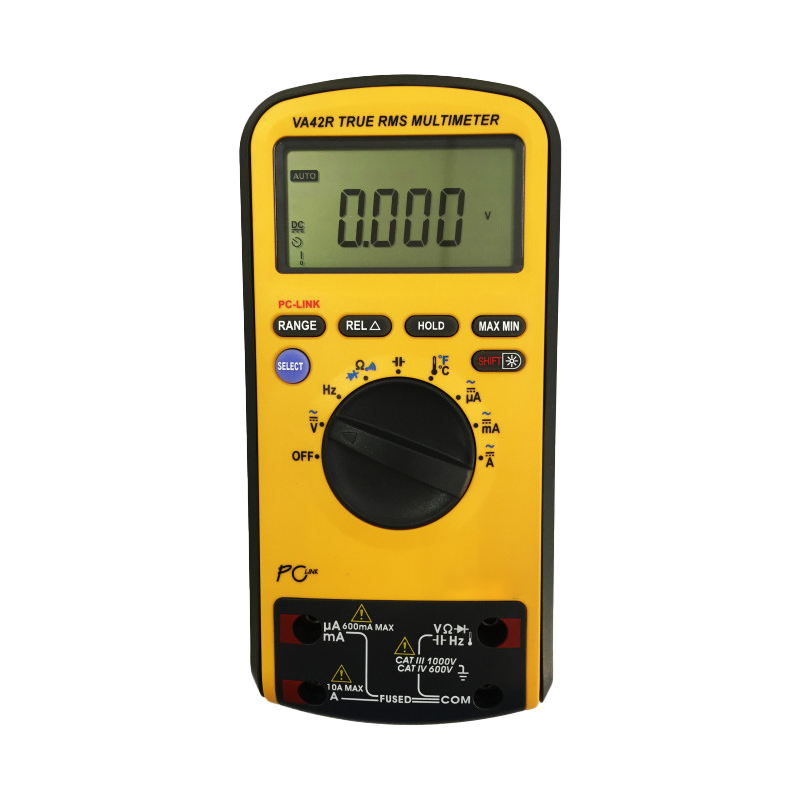

CAT IV Digital Multimeter With RMS Function VA40/VA40R/VA42R


This digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.
This instrument complies with IEC 61010-1: 2001, CAT Ⅲ 1000V and CAT Ⅵ 600V overvoltage standards

Send Inquiry


    Product Features:

    • DATA HOLD mode
    • Manual ranging and Autorange mode
    • Battery Saver
    • Relative measurement mode
    • TRUE RMS measurement
    • AC and DC Voltage measurement
    • Resistance measurement
    • Diode Test
    • Continuity Check
    • Capacitance measurement
    • Frequency and Duty Cycle measurement
    • Temperature measurement
    • Current measurement
    • PC Link
    • Environment conditions: 1000V CAT Ⅲ and 600V CAT Ⅳ
    • Pollution degree: 2
    • Altitude < 2000m
    • Operating temperature: 0~40℃, 32℉~122℉(<80% RH, <10℃ non-condensing)
    • Storage temperature: -10~60 ℃, 14℉~140℉(<70% RH, battery removed)
    • Temperature Coefficient: 0.1×(specified accuracy) / ℃ (<18℃ or >28℃)
    • MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
    • Fuse Protection: A and mA: F 0.63A/1000V ∅10.3×38; A: F 10A/1000V ∅10.3×38.
    • Sample Rate: 3 times/sec for digital data.
    • Display: 3 5/6 digits LCD display. Automatic indication of functions and symbols.
    • Range selection: automatic and manual.
    • Over Range indication: LCD will display “OL”.
    • Low battery indication: The “” is displayed when the battery is under the proper operation range.
    • Polarity indication: “–” displayed automatically.
    • Power source: 9V battery
    • Battery type: 6F22.
    • Dimensions: 190(L)×90(W)×40(H) mm.
    • Weight: 500g. Approx. (battery included).

    Product Parameters:

    VA40 VA40R
    DC Voltage 600mV±0.5%,6/60/600V±0.8%,1000V±1.0%
    AC Voltage 600mV/6V/60V/600V±1.0%,1000V±1.5%
    DC Current 600μA/6000μA/60mA/600mA/6A/10A±1.5%
    AC Current 600μA/6000μA/60mA/600mA±1.5%,6A/10A±3%
    Resistance 600Ω/6KΩ/60KΩ/600KΩ/6MΩ±0.5%,60Ω±1.5%
    Capacitance 60nF±3%,600nF/6μF/60μF/600μF/6mF±5% (60mF)
    Logic Frequency 10 Hz ~ 1MHz ±(0.1%+3)
    Linear Frequency 6 Hz ~ 10KHz ±(0.05%+8)
    Frequency 10 Hz ~ 1MHz ±(0.1%+3)
    Temperature  -55~0℃±5.0%,0~1000℃±2.0%
    Display Discounts 6000 6000
    Auto/Manual Range
    NCV Function
    RMS Measurement
    Max measurement
    Relative measurement
    Data hold
    Back light
    Diode test
    Continuity test
    LAN wire test
    Phone test
    Cable check
    Electric field test
    USB port connect to PC
    Low power indication
    Auto power off
    Low battery detect
    Power 6F22(9V)X1 6F22(9V)X1

    Application and After-Sales Service:

    With Functions of TRUE RMS measurement, Voltage measurement, Current measurement, Resistance measurement, Diode and continuity Test, Temperature measurement, Capacitance measurement, Relative measurement, Manual and Auto Range, PC link, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.


    Delivered with the multimeter:

    ∞User’s manual One piece
    ∞Test leads One piece
    ∞”K” type Thermocouple One piece
    ∞Multi-function socket One piece
    ∞USB line One piece
    ∞PC-Link software CD One piece

    General Maintenance:

    Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
    Dirt or moisture in the terminals can affect readings.
    To clean the terminals:
    Turn the meter off and remove all test leads.
    Shake out any dirt that may be in the terminals.
    Soak a new swab with a cleaning and oiling agent (such as VA-40).
    Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.
