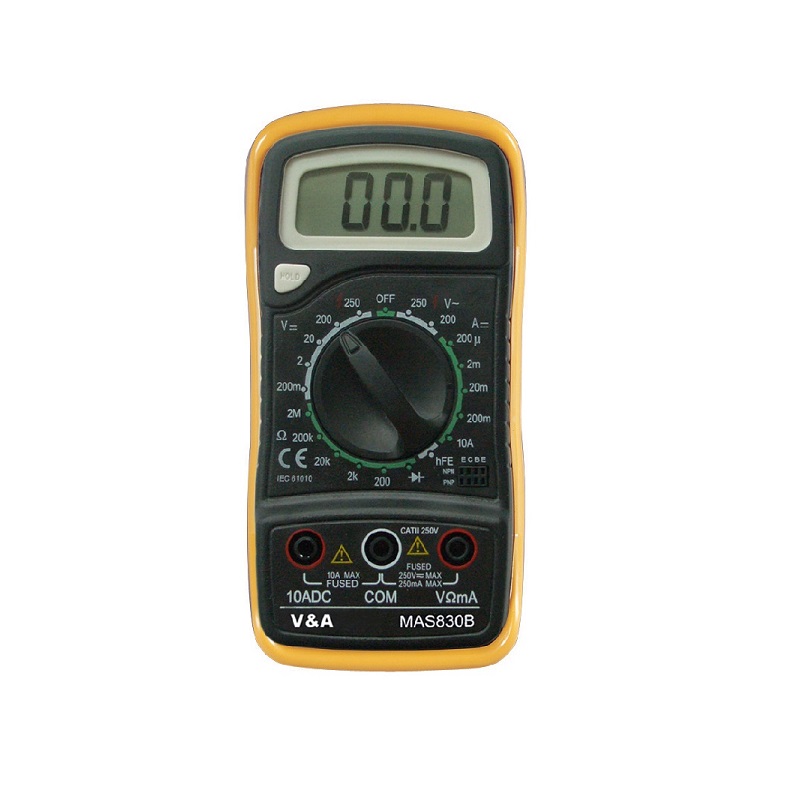

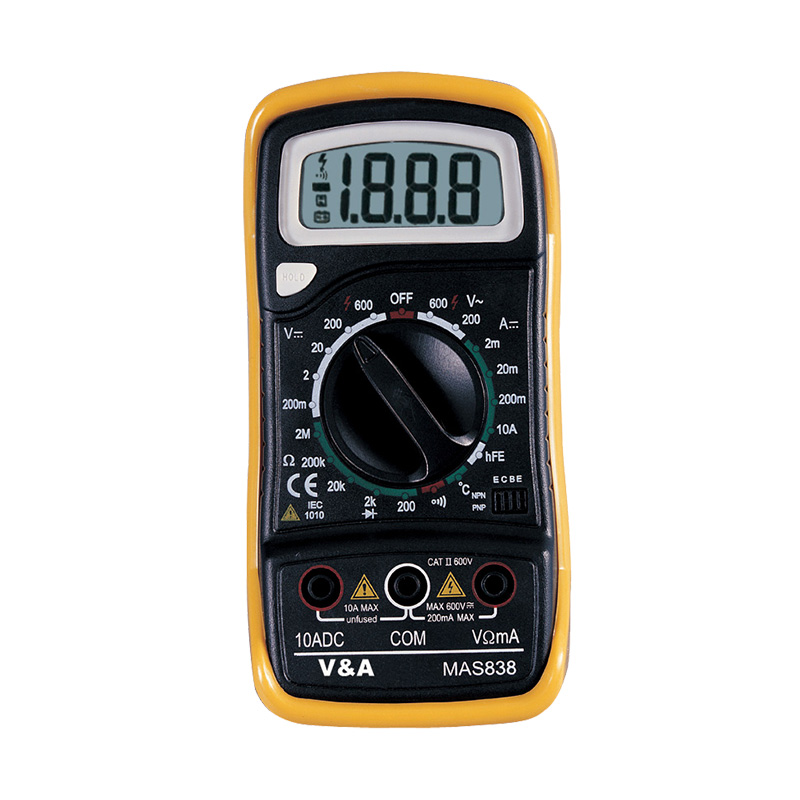

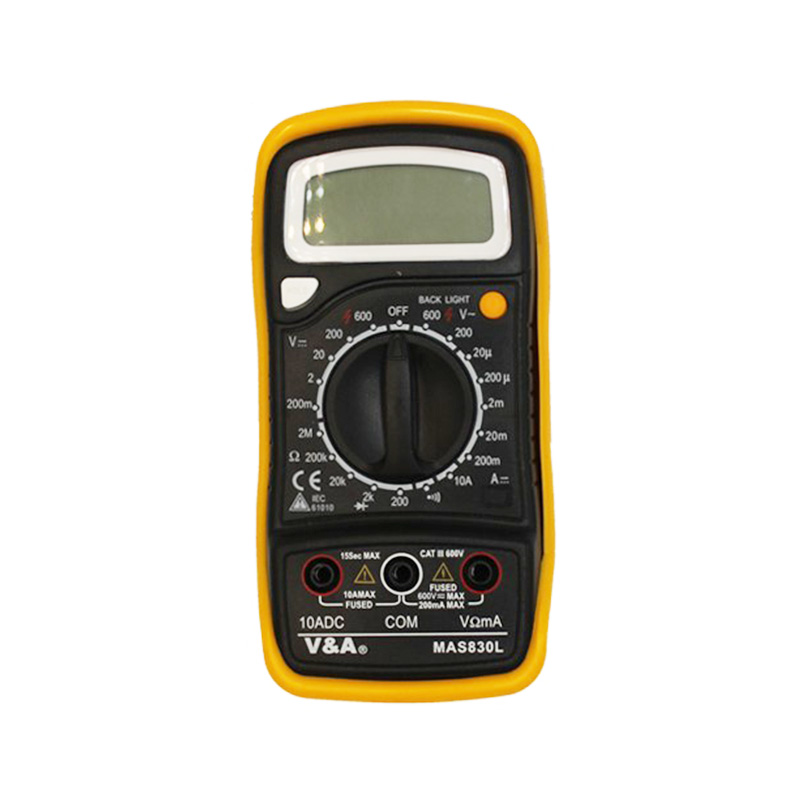

This Mini Size Classical Digital Multimeter has been designed according to IEC 1010 concerning electronic measuring instruments with an overvoltage category (CAT III) and pollution 2.
The Mini Size Classical Digital Multimeter is a handheld 3 1/2 digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode, Transistor and Continuity Test with battery operated. The Back light of display is optional.
This Mini Size Classical Digital Multimeter is with the functions of data hold and diode test.
|DC Voltage||200mV/2V/20V/200V/600V||±0.5% ~ ±0.8%|
|DC Current||20μA/200μA/2mA/20mA/200mA/10A||±1.0% ~ ±3.8%|
|Resistance||200Ω/2KΩ/20KΩ/200KΩ/2MΩ||±0.8% ~ ±1.0%|
|Power||Battery 9V 6F22 X 1|
|Size||138 × 69 × 31 mm|
With Functions of DC Voltage measurement,DC Current measurement, AC Voltage measurement, Resistance measurement, Diode test,Transistor measurement, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.
Operator’s instruction manual
Set of test leads
9 volt battery. NEDA 1604 6F22 006P type
Before opening the case, always disconnect test leads from all energized circuits.
For continue protection against fire; replace fuse only with the specified voltage and current ratings:
F 200mA/250V(Quick Acting)
Never use the meter unless the back cover is in place and fastened completely.
Do not use abrasives or solvents on the meter. To clean it using a damp cloth and mild detergent only.
