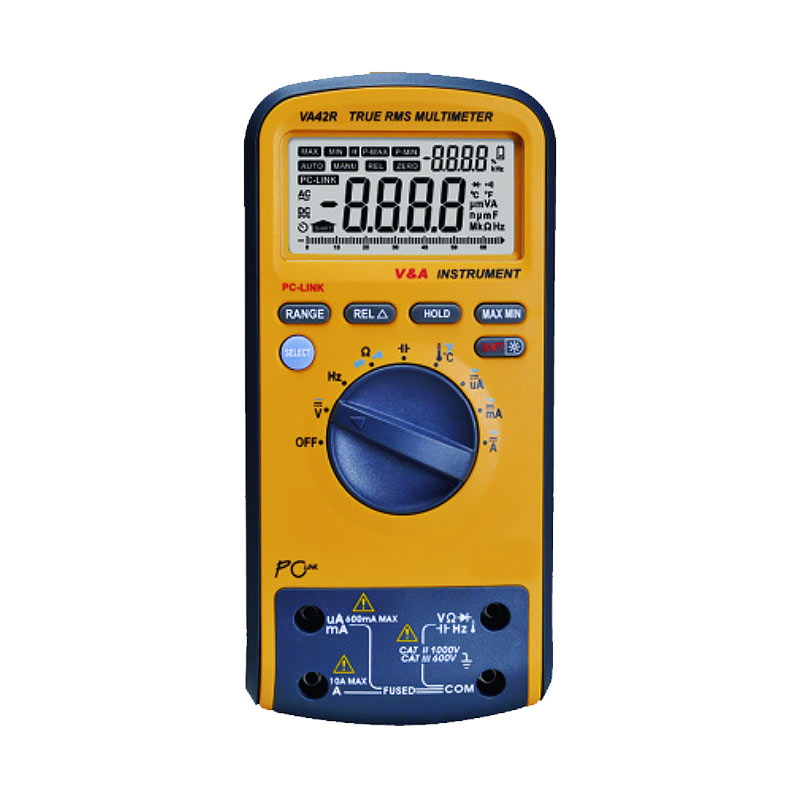

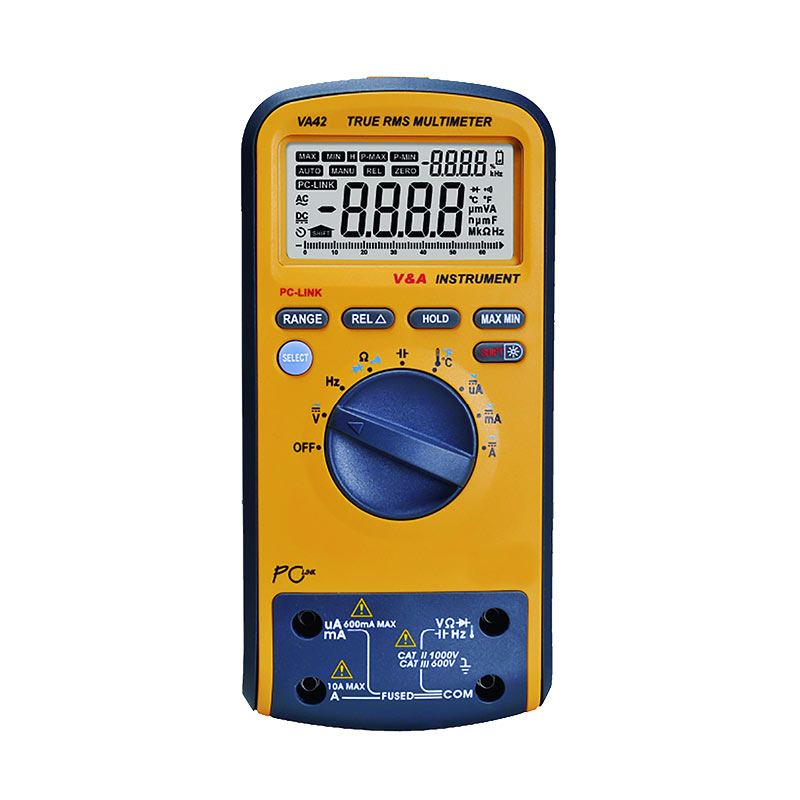

Auto Scan CAT IV True RMS Multimeter With PC Link And Peak Hold Function VA42/ VA42R/VA42RP


This auto scan digital multimeter has function of true RMS measurement and relative measurement. The auto scan digital multimeter also have the PEAK HOLD function option. This auto scan digital multimeter with Peak hold function is ideal for use in the fields, workshop, school, hobby and home applications.
This instrument complies with IEC 61010-1: 2001, CAT Ⅲ 1000V and CAT Ⅵ 600V overvoltage standards. See Specifications

Send Inquiry


    Product Features:

    • DATA HOLD mode
    • True RMS measurement
    • Relative measurement mode
    • Manual ranging and Autorange mode
    • Analog indication bar
    • Auto power off setting
    • AC and DC Voltage measurement
    • Temperature measurement
    • Current measurement
    • Resistance Diode Continuity measurement
    • Capacitance measurement
    • Frequency measurement
    • PC Link
    • General specifications
    • Environment conditions: 1000V CAT Ⅲ and 600V CAT Ⅳ
    • Pollution degree: 2
    • Altitude < 2000m
    • Operating temperature: 0~40℃, 32℉~122℉(<80% RH, <10℃ non-condensing)
    • Storage temperature: -10~60 ℃, 14℉~140℉(<70% RH, battery removed)
    • Temperature Coefficient: 0.1×(specified accuracy) / ℃ (<18℃ or >28℃)
    • MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
    • Fuse Protection: A and mA: F 0.63A/1000V ∅10.3×38; A: F 10A/1000V ∅10.3×38.
    • Sample Rate: 3 times/sec for digital data.
    • Display: 6600 counts. Automatic indication of functions and symbols.
    • Range selection: automatic and manual.
    • Over Range indication: LCD will display “OL”.
    • Low battery indication: The “” is displayed when the battery is under the proper operation range.
    • Polarity indication: “–” displayed automatically.
    • Power source: 9V
    • Battery type: 6F22.
    • Dimensions: 190(L)×90(W)×40(H) mm.
    • Weight: 500g. Approx. (battery included).

    Product Parameters:

    VA42 VA42R VA42RP
    DC Voltage 600mV±0.5%,6.6V/66V/660V±0.8%,1000V±1.0%
    AC Voltage 660mV/6.6V/66V/660V±1.2%,1000V±1.5%
    DC Current 660uA/6600uA±1.0%,/66mA/600mA±1.5%,10A±1.8%
    AC Current 660uA/6600uA±1.5%,/66mA/600mA±1.8%,10A±2%
    Resistance 660Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ±1.2%,66MΩ±2%
    Capacitance: 6.6nF±5.0%,66nF/660nF/6.6μF/60±3.0%,66μF/660μF/6.6mF±5.0%,66mF
    Logic Frequency 6HZ~2MHZ±(0.05%+8)
    Linear Frequency 6HZ~66KHZ±(0.05%+8)
    Temperature  -55~0℃±5.0%,0~1000℃±2.0%
    Display Counts 6600 6600 6600
    Auto/manual range
    True RMS Measurement
    Relative measurement
    Data hold
    Peak hold
    Back light
    Electric field detector
    Diode test
    Continuity test
    USB port connect to PC
    Low power indication
    Auto power off
    Power 6F22(9V)X1 6F22(9V)X1 6F22(9V)X1
    Size 190x90x40 mm 190x90x40 mm 190x90x40 mm
    Weight ~500g (including battery) ~500g (including battery) ~500g (including battery)

    Application and After-Sales Service:

    With Functions of True RMS measurement Relative measurement mode,Voltage measurement, Current measurement, Resistance measurement, Analog indication bar, data hold, Diode and continuity Test, Temperature measurement, PC Link, Auto power off setting, Manual and Auto Range, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.


    Delivered with the multimeter:

    ∞User’s manual One piece
    ∞Test leads One piece
    ∞”K” type Thermocouple One piece
    ∞Multi-function socket One piece
    ∞USB line One piece
    ∞PC-Link software CD One piece

    General Maintenance:

    Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
    Dirt or moisture in the terminals can affect readings.
    To clean the terminals:
    Turn the meter off and remove all test leads.
    Shake out any dirt that may be in the terminals.
    Soak a new swab with a cleaning and oiling agent (such as VA-41).
    Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.
