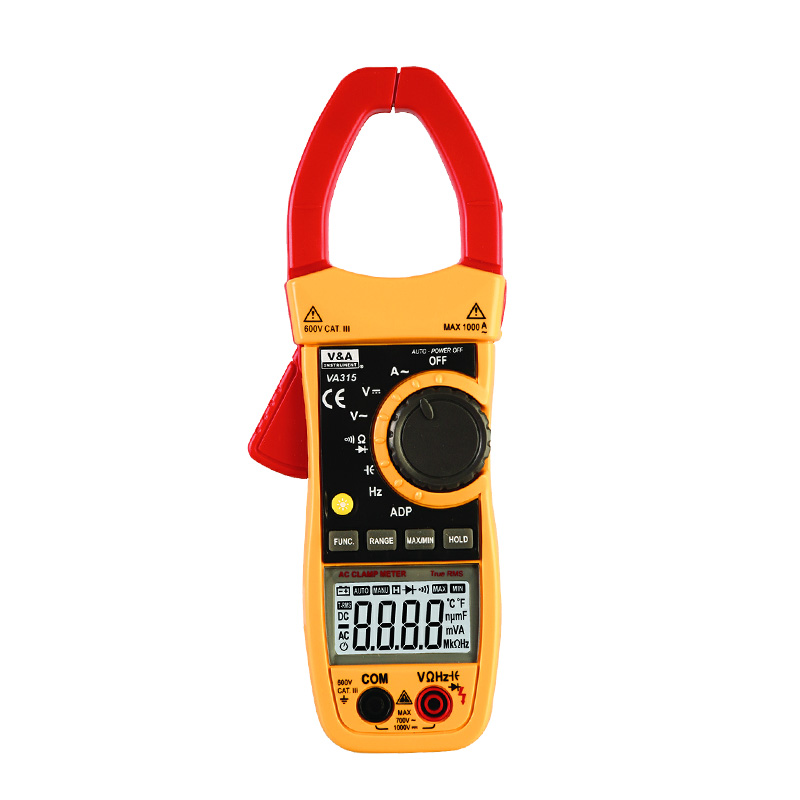

The meter is an auto range 1000 AC Amps clamp meter with 5999 counts. For measuring DC and AC voltage, AC current, Resistance, Capacitance, Frequency, ADP, Diode, and Continuity Test with battery operated.
There is the AC measurement to be RMS or TRUE RMS about the meter. It is chosen as user buy.
The auto range 1000 AC Amps clamp meter has been designed according to IEC61010 1 and IEC61010 2 032 concerning safety requirements for electrical measuring instruments and handheld current clamps with double insulation over voltage category 1000V CAT III and pollution 2.
Product Features：
| Maximum voltage: | 1000V CATII 600V CATIII |
| Altitude: | 2000m |
| Display: | LCD 5999 counts,
Updates 2-3/sec |
| Ranging method: | Auto/manual range mode |
| Polarity indication: | “-” display for negative polarity |
| Overrange indication: | LCD will display “OL” |
| Low battery: | “ ” will appears on LCD |
| Jaw capability: | 40mm,Max conductor size |
| Power: | Battery 1.5V×3  Size AAA |
| Size: | 225mm×86mm×32mm |
| Weight: | Approx. 330g |
| Operating: | 5℃ to 35℃ |
| Storage temperature: | -10℃ to 50℃ |
| VA312 | VA315 | |
| DC Voltage | 6V/60V/600V±(0.8%+5) | |
| 1000V±(1%+2) | ||
| AC Voltage | 6V/60V/600V/700V±(1.2%+5) | |
| DC Current | ||
| AC Current | 600A±(2.5%+5) | |
| 1000A±(3%+5) | ||
| Resistance | 600/6K/60K/600K/6MΩ±(1%+3) | |
| 60MΩ±(5%+5) | ||
| Capacitance | 600nF/6μF/60μF/600μF/1000μF±(4%+5) | |
| Frequency | 40/600/6K/60K/100KHZ±(0.1%+2) | |
| Frequency from Clamp | ||
| ADP Measurement | 600mV±(3%+5) | |
| Temperature | ||
| Features | ||
| Display Counts | 5999 | 5999 |
| LCD Size | 44×23 mm | 44×23 mm |
| Max.Jaw Opening | ∮40 mm | ∮40 mm |
| Continuity test | √ | √ |
| Auto range | √ | √ |
| Auto/Manual range | √ | √ |
| Data hold | √ | √ |
| True RMS Measurement | √ | |
| Relative Measurement | ||
| Max/Min Value Measurement | √ | √ |
| Back light | √ | √ |
| Auto power off | √ | √ |
| Low Power Indication | ||
| Diode test | √ | √ |
| Bar graph | ||
| Power | Battery 1.5Vx3 Size AAA | |
| Size | 225×86×32 mm | |
| Weight | ~330g (including battery) | |
With Functions of Voltage measurement, Current measurement, Resistance measurement, Diode test,Continuity test, Capacitance meansurement,Temperature measurement, Frequency and ADP measurement, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.
Operator’s instruction manual
Set of test leads
Gift box
Battery 1.5V3 Size AAA
* Before opening the meter, always disconnect test leads from all sources of electric current.
* If any faults or abnormalities are observed, the meter can not be used any more and it has to be checked out.
* Never use the meter unless the back cover and the battery cover are in place and fastened fully.
* Do not use abrasives or solvents on the meter, use a damp cloth and mild detergent only.
