Home > Products > High Accuracy Multimeter > 2-In-1 Insultation Multimeter VA588 With 2 Gigaohms Insulation Resistance Up To 1000V Insulation Test Voltage

2-In-1 Insultation Multimeter VA588 With 2 Gigaohms Insulation Resistance Up To 1000V Insulation Test Voltage

VA588(1)

VA588 handheld true RMS insulation Multimeter combine the features of a digital multimeter and insultaion resistance tester. This handheld insulation Multimeter can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances and insulated materials.

Send Inquiry

Description

Product Features：

5000 counts measurement
ACV and DCV measurements reach up to 1000V.
DC measurement accuracy reaches up to 0.1%.
0.1 Ω resistance resolution and 10μV voltage resolution.
Linear frequency measurement, logic frequency/duty ratio measurement.
Capacitance measurement from 0.1nf to 1000μF.
AC/DC true RMS measurement.
Maximum value/minimum value measurement.
Insulation resistance measurement,range: 50KΩ to 2GΩ.
Automatic shutdown/continuous working mode selection.
Back light control.
Overload protection.
Secondary plasticizing meter shell, with insulating performance reaching 1000V CAT Ⅲ

Product Parameters：

	VA588
DC Voltage	0.001V~1000V±(0.1%+2)
AC Voltage	0.1mV~1000V±(0.8%+4)
DC Current	0.1μA~500mA±(0.2%+2)
AC Current	0.1μA~500mA±(0.8%+4)
Resistance	0.1~50MΩ±(0.1%+5)
Capacitance	1nF~1000μF±(2%+10)
Frequency	5Hz~2MHz±(0.1%+4)
Insulation Test Range	0.05MΩ~2GΩ ±(1.5%+5)
Insulation Test Voltage	50/100/250/500/1000V ±(1.5%+5)
Features
Display Counts	5000
Large LCD	with full angle
True RMS Measurement	√
Max/Min Value Measurement	√
Diode Test	√
Back Light	√
Auto Shutdown/Continuous Working	√
Overload Protection	√
Power	1.5V AAA batteries x 6
Size	200x100x40 mm
Weight	~560g (including battery)

Application and After-Sales Service：

With Functions of Voltage measurement, Current measurement, Resistance measurement, Capacitance measurement ,Diode test,Continuity test, Maximum Value/Minimum Value/Average Measurement, Linear Frequency Measurement , Automatic Shutdown and Continuous Operation Mode Selection, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.

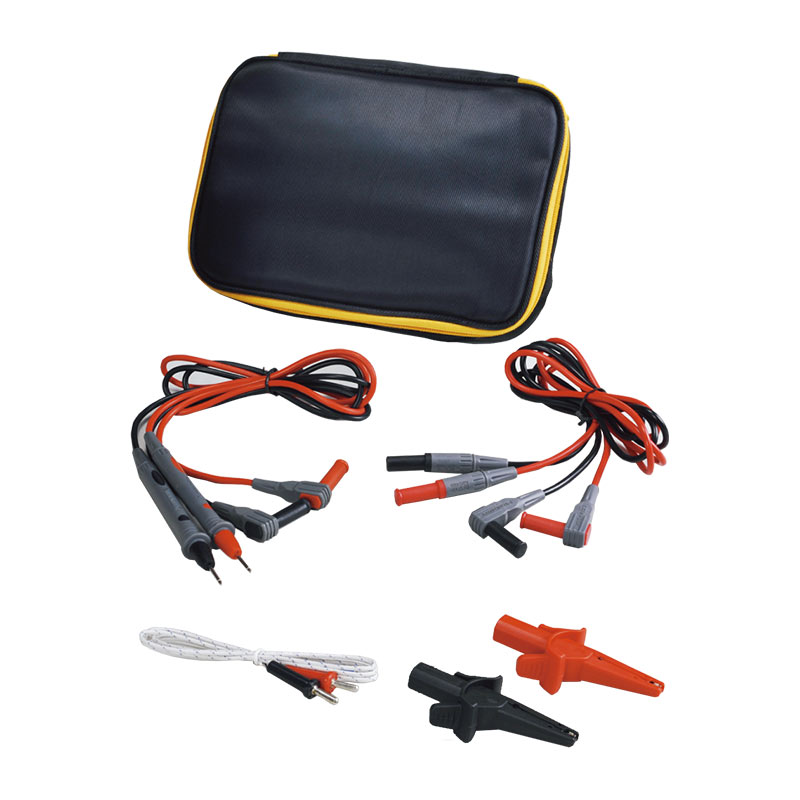

Accessories：

∞ User’s manual	One piece
∞Test leads	One pair
∞ Free Carrying bag	One piece

General Maintenance
Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
Dirt or moisture in the terminals can affect readings.
To clean the terminals:
∞Turn the meter off and remove all test leads.
∞Shake out any dirt that may be in the terminals.
∞Soak a new swab with a cleaning and oiling agent (such as WD-40).
∞Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.
To avoid electrical shock or damage to the meter, do not get water inside the case. Remove the test leads and any input signals before opening the case
